    Heavy Duty Commercial Concrete Pump Placer Pouring

    Ask Lasest Price
    Brand Name : Sunny
    Model Number : HBT30
    Price : USD5000-7000 PER SET
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 500 SET PER MONTH
    Delivery Time : 20-35DAYS
    • Product Details
    • Company Profile

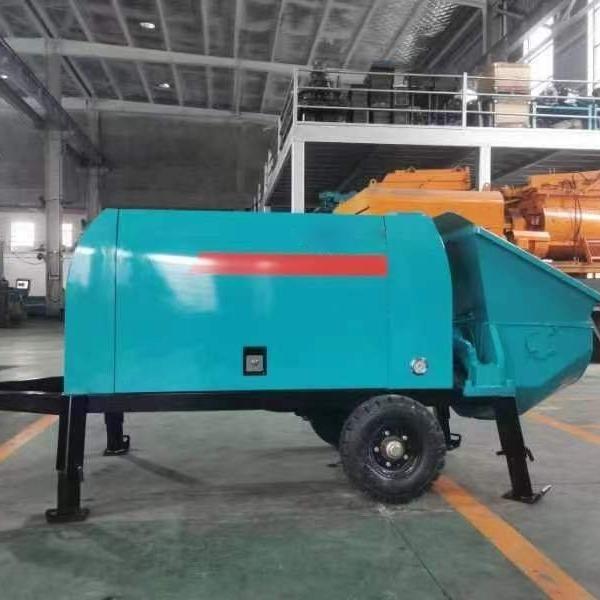

    Heavy Duty Commercial Concrete Pump Placer Pouring

    High Performance Heavy Duty Commercial Hbt 30 Concrete Pump Singapore

    Product Description


    HBT series concrete pumps are excellent modernized concrete machinery developed with aid of advanced technology. They are high tech concrete machine which are incorportated with international advanced technology and experiences in designing to replace the traditional way to lift the concrete by labor force.they adopt the diesel engine drive and motor drive S valve pump and gate valve pump with excellent techinical performance, high standard configuration and high
    reliability.

    Heavy Duty Commercial Concrete Pump Placer Pouring


    Parameters
    Unit
    HBT30.6.35S
    HBT40.8.45S
    HBT50.10.55S
    HBT60.13.90S
    HBT80.16.110S
    Type of Power Machine
    /
    Electric/Diesel engine
    Electric/Diesel engine
    Electric/Diesel engine
    Electric/Diesel engine
    Electric/Diesel engine
    Pumping Volume(Max)
    m³/h
    30
    35
    52
    66
    75
    Outlet Pressure
    Mpa
    6
    8
    10
    13
    13
    Hydraulic System Type
    /
    Open
    Open
    Open
    Open
    Open
    High/Low Switch
    /
    Rotary Valve
    Rotary Valve
    Rotary Valve
    Rotary Valve
    Rotary Valve
    Rater Power
    kw
    35
    45
    55
    90
    90
    Distribution Valve Type
    /
    S Valve
    S Valve
    S Valve
    S Valve
    S Valve
    Concrete Cylinder Diameter*Stroke
    mm
    Φ125*600
    Φ140*1000
    Φ200*1000
    Φ200*1650
    Φ200*1800
    Hopper Capacity*Feeding Height
    L*mm
    350*1000
    350*1100
    600*1400
    600*1400
    600*1400
    Max.Aggregate Size
    mm
    Pebble:20;
    Crushed Stone:20
    Pebble:20;
    Crushed Stone:20
    Pebble:50;
    Crushed Stone:40
    Pebble:50;
    Crushed Stone:40
    Pebble:50;
    Crushed Stone:40
    Total Weight
    kg
    2300
    2500
    4500
    6000
    6100
    Dimension(L*W*H)
    mm
    3800*1500*1600
    4500*1500*1650
    5100*1700*2000
    6400*2100*2200
    6400*2100*2200

    Product Features:


    The HBT30 concrete pump offers several advantages in concrete placement:

    1. Compact and Maneuverable: The compact size of the HBT30 makes it suitable for construction sites with limited space or restricted access. Its maneuverability allows for easy navigation through narrow pathways and congested areas.

    2. Versatility: The HBT30 concrete pump can handle various types of concrete mixes, including low slump, high slump, and lightweight concrete. It is suitable for a wide range of applications, such as foundations, slabs, walls, and more.

    3. Precise Placement: The HBT30 allows for precise and controlled concrete placement, even in challenging or hard-to-reach areas. It provides flexibility in construction projects, accommodating different heights and distances.

    4. Reliability and Durability: The HBT30 is designed to withstand the demanding conditions of construction sites. Its sturdy construction and high-quality components ensure long-lasting performance and reliable operation.

    5. User-Friendly Operation: The HBT30 is designed with user-friendly features that make it easy to operate and maintain. Its intuitive control system and accessible components simplify the pumping process and reduce downtime.

    The HBT30 concrete pump is a versatile and reliable solution for concrete placement in small to medium-sized construction projects. Its compact design, high performance, and ease of operation make it a valuable asset for contractors and construction companies seeking efficient and cost-effective concrete pumping capabilities.
