    Mixer Cement Pump Mixer Mini

    Ask Lasest Price
    Brand Name : Sunny
    Model Number : T6
    Price : USD18000-25000 PER SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 SET PER MONTH
    Delivery Time : 20-35DAYS
    • Product Details
    • Company Profile

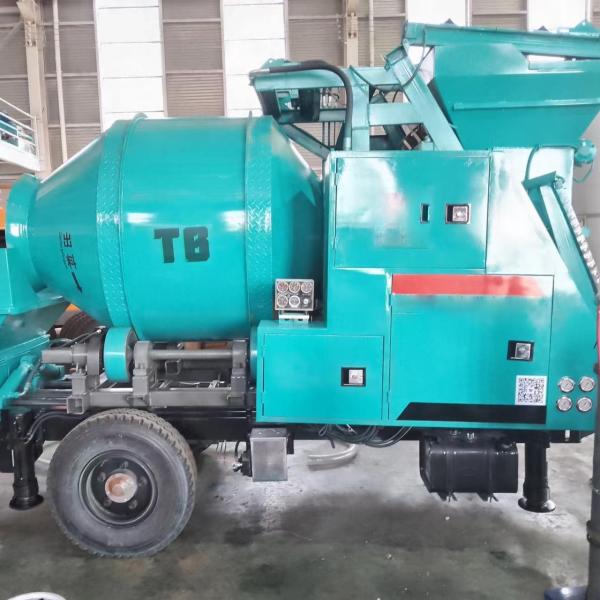

    Mixer Cement Pump Mixer Mini

    beton mixer cement pump and mixer mini concrete pump with mixer

    Portable Concrete Mixer and Pump

    The concrete mixing pump offers several advantages over traditional methods of concrete mixing and transportation:

    1. Efficiency and Time Savings: By combining the mixing and pumping functions, the concrete mixing pump eliminates the need for separate equipment and reduces the time required for concrete production and transportation. It allows for continuous and efficient concrete placement, enhancing project productivity.

    2. Versatility: The concrete mixing pump is highly versatile and can handle a wide range of concrete mixes, including low slump, high slump, and lightweight concrete. It can be used for various applications such as foundations, slabs, walls, and even vertical and overhead placements.

    3. Accessibility: The concrete mixing pump can reach areas that are challenging to access with traditional concrete delivery methods. It is particularly useful in congested or restricted construction sites where space is limited or obstacles hinder the movement of concrete trucks.

    4. Cost Savings: The concrete mixing pump reduces the need for manual labor and additional equipment, resulting in cost savings for construction projects. It also minimizes material wastage by allowing precise control over the amount of concrete needed for each application.

    5. On-Site Mixing: With a concrete mixing pump, concrete can be mixed on-site, eliminating the need for the transportation of pre-mixed concrete. This ensures the availability of fresh concrete, which is essential for achieving high-quality and durable construction.

    Mixer Cement Pump Mixer MiniMixer Cement Pump Mixer Mini

    Main Features

    1) Simple structure in linear type ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) High pressure double crank to control the die opening and closing.

    4) Running in a high automatization and intellectualization,no pollution

    5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.


    Item
    HBTS30R
    HBTS40R
    HBTS60R
    HBTS80-13R
    HBTS90-16R
    Theoretical Displacement(m³/h)
    30
    40/26
    60/38
    80/73
    90/50
    Maximum Outlet pressure(Mpa)
    10
    10/6
    12/7
    13/7.5
    16/9
    Max. Conveying distance V.H.
    140/600
    140/600
    160/800
    180/900
    260/1000
    Engine Power(kw)
    62.5
    62.5
    82
    129
    146
    Delivery Cylinder Bore *Stroke(mm)
    160*1000
    160*1300
    180*1300
    200*1650
    200*1800
    Main Cylinder Bore *Stroke(mm)
    100*1000
    100*1300
    110*1300
    125*1650
    140*1800
    High And Low Voltage Switching
    No
    Have
    Have
    Have
    Have
    Hydraulic Tank Volume(l)
    300
    350
    400
    50
    500
    Hopper Volume (l)
    90
    90
    115
    230
    230
    Fuel Tank Volume(㎡)
    0.4
    0.4
    0.5
    0.8
    0.8
    Maximum Aggregate Material Diameter(mm)
    20
    40
    50
    50
    50
    Feeding Height(mm)
    1250
    1250
    1300
    1450
    1450
    L*W*h(mm)
    4600*1750*2200
    4800*1750*2200
    5000*2100*2260
    5900*2000*2260
    6000*2000*2260
    Host Quality(kg)
    3700
    390
    4100
    6300
    6500
