Hunan Sunny Intelligent Machinery Co.,LTD.
2 Years
| Ask Lasest Price | |
| Brand Name : | SUNNY |
| Model Number : | HSZ100 |
| Price : | USD 110000-150000/ SET |
| Payment Terms : | L/C, T/T, D/P, Western Union, MoneyGram |
| Supply Ability : | 20 Set/Sets per Month |
| Delivery Time : | 25-30 days |

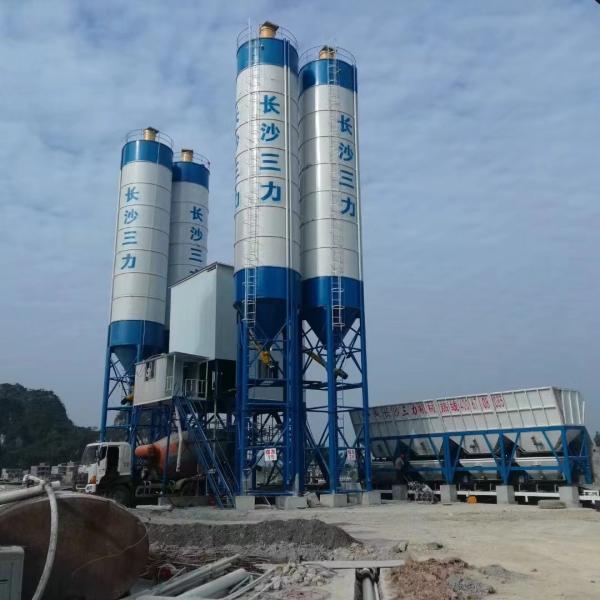

The HZS25 Bucket Type Batching Plant is a versatile and efficient piece of equipment designed for producing high-quality concrete. Ideal for small to medium-sized construction projects, this plant offers a compact footprint, easy operation, and reliable performance.
Key Features:
| Model | HZS35 | HZS50 | HZS75 | HZS100 |
| Production in Theory (m3/h) | 35 | 50 | 75 | 100 |
| Mixer Type | JS750 | JS1000 | JS1500 | JS2000 |
| Mixing Motor Power (KW) | 2×15 | 2×18.5 | 2×30 | 2×37 |
| Cycle time(S) | 60 | 60 | 60 | 60 |
| Mixer Discharging Volume(L) | 750 | 1000 | 1500 | 2000 |
| Maximum Particle Size of Aggregate(mm) | 60 | 60 | 60 | 80 |
| Batching Volume(L) | 1200 | 1600 | 2400 | 3200 |
| Aggregate Species | 2-3 | 2-4 | 4 | 4 |
| Aggregate lifting motor power(kw) | 7．5 | 15 | 18.5 | 22 |
| Discharging Height (m) | 4 | 4 | 4 | 4 |
| Installed Capacity(KW) | 50 | 70 | 110 | 120 |
Features of concrete batching plant:
1. It adopts a combined structure and unitized module, which allows
for quick and convenient installation and demolition.
2. The unloading angle of the aggregate bin has been increased to
solve the problem of difficulties in unloading caused by rain.
3. The use of cylinder discharge or electric push rod makes it
convenient and quick to discharge materials.
4. The overall steel structure of the mixing station is constructed
with high-quality steel, providing strong structural strength and
stability.
5. The mixing machine utilizes a twin-shaft forced mixing main
machine, delivering strong mixing performance, uniformity, and high
productivity.
6. Excellent pneumatic components, electrical components, etc., are
employed to ensure equipment reliability and accurate metering
performance.
7. Each maintenance and repair site is equipped with a walking
platform or check ladder, offering sufficient operation space for
easy maintenance and repair.
8. Environmental protection measures include energy-saving features
such as pulse dust removal system and recycling waste-water for
reuse.
|
|
