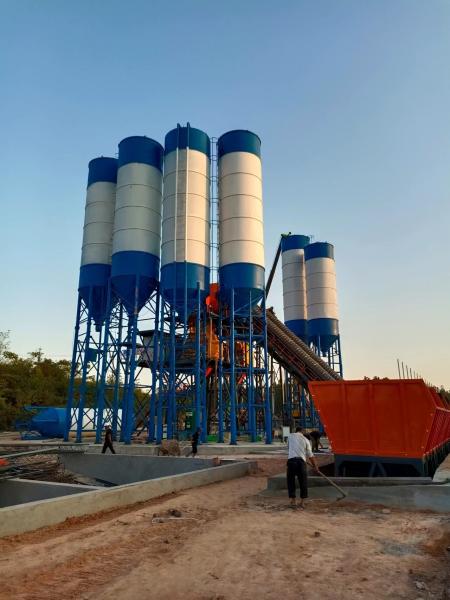

    Large Capacity Fully Automatic Stationary Hzs90 Concrete Batching Plant With Cement Silo 50 Ton-200 Ton

    Ask Lasest Price
    Brand Name : SUNNY
    Model Number : HSZ90
    Price : USD 110000-150000/ SET
    Payment Terms : L/C, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    Large Capacity Fully Automatic Stationary Hzs90 Concrete Batching Plant With Cement Silo 50 Ton-200 Ton

    Ready Mix Concrete Batching Plant 90m3 /H Precast Concrete Plant Equipment

    HZS90 Manufacturer Concrete Batch Plant concrete batching plant​


    The HZS90 batching plant is equipped with advanced weighing systems that ensure precise measurement and dosing of materials. With precision sensors and load cells, these systems accurately weigh aggregates, cement, water, and additives. This precise control of material ratios guarantees consistent and high-quality concrete mixes.

    Installation and setup of the HZS90 batching plant are made easy with its modular design. The plant consists of multiple modular units that can be quickly assembled and disassembled, reducing setup time and facilitating transportation and relocation. This modular design also allows for flexibility in configuration to meet specific project requirements.


    Name of parameter
    HZS60
    HZS90
    HZS120
    HZS180
    HZS240
    Theoretical productivity
    60 M3/h
    90 M3/h
    120 M3/h
    180 M3/h
    240m³/h
    Model of mixer
    JS1000
    JS1500
    JS2000
    JS3000
    JS4000
    Mixing motor power
    2x18.5Kw
    2x30Kw
    2x37Kw
    2x55Kw
    2*75Kw
    Cycle period
    60s
    60s
    60s
    60s
    60s
    Volume of mixer
    1000L
    1500L
    2000L
    3000L
    4000L
    Unloading height
    4.0m
    4.0m
    4.0m
    4.0m
    4.0m
    Measuring range and precision of aggregate
    (600-2000)≤±2%
    (700-2400)≤±2%
    (1000-3600)≤±2%
    (1600-4800)≤±2%
    (1600-4800)≤±2%
    Measuring range and precision of cement
    (300-1200)≤±1%
    (300-1200)≤±1%
    600-1800)≤±1%
    (800-2400)≤±1%
    (800-2400)≤±1%
    Measuring range and precision of coal ash
    (200-600)≤±1%
    (200-600)≤±1%
    (300-900)≤±1%
    (400-1200)≤±1%
    (400-1200)≤±2%
    Measuring range and precision of water
    200-600)≤±1%
    (200-600)≤±1%
    (200-700)≤±1%
    (360-1200)≤±1%
    (360-1200)≤±1%
    Measuring range and precision of admixture
    20-60)≤±1%
    (20-60)≤±1%
    (30-100)≤±1%
    (36-120)≤±1%
    (36-120)≤±1%

    Large Capacity Fully Automatic Stationary Hzs90 Concrete Batching Plant With Cement Silo 50 Ton-200 Ton

    The HZS90 Concrete Batching Plant is a highly efficient and versatile solution for large-scale concrete production, ideal for infrastructure projects, commercial construction, and various civil engineering applications. With a production capacity of 90 cubic meters per hour, this plant is designed to meet the demands of high-performance concrete mixing. Featuring advanced technology such as a twin-shaft mixer, precise weighing systems, and a user-friendly control interface, the HZS90 ensures consistent quality and efficiency in every batch. Its modular design allows for easy installation and adaptability to different site requirements, making it a reliable choice for contractors seeking to optimize their concrete production processes.

    Q: What kind of products do you have?
    1. Stationary concrete batching plant arranges from HZS25 to HZS180.
    2. Mobile concrete batching plant.
    3. Concrete mixer machine.
    4. Portable drum concrete mixer with diesel engine.
    5. Spare parts including screw conveyor and bolted cement silo.
    Q: Are you trading company or manufacturer?
    A: We are manufacturer. We can design and manufacturer products with our patent. Welcome to visit us to check it!
    Q: What are the terms of payment in your formal trade?
    A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
    T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
    L/C: 100% irrevocable L/C at sight.
