High Efficiency 60m3/h Stationary Concrete Batching Plant Concrete Mixing Plant
High Efficiency 60m3/h Stationary Concrete Batching Plant Concrete Mixing Plant
The Sunny Concrete Mixing Plant is engineered for flexibility, offering both stationary and mobile configurations depending on project requirements. It operates through a fully automated process where the materials are weighed, mixed, and discharged with minimal human intervention, which increases productivity and reduces the potential for errors. The plant is equipped with advanced technology, allowing operators to monitor and adjust the mixing process through a user-friendly control panel.
On the basis of combining advantages of various foreign ready mixed concrete batching plant and advanced technology, HZS ready mixed concrete batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
Key Components and Features:
- Twin-shaft mixer: This core component ensures thorough mixing of aggregates, cement, water, and other additives, resulting in a high-quality concrete mix.
- Batching system: Precisely measures and dispenses the required quantities of each ingredient, guaranteeing consistent concrete quality.

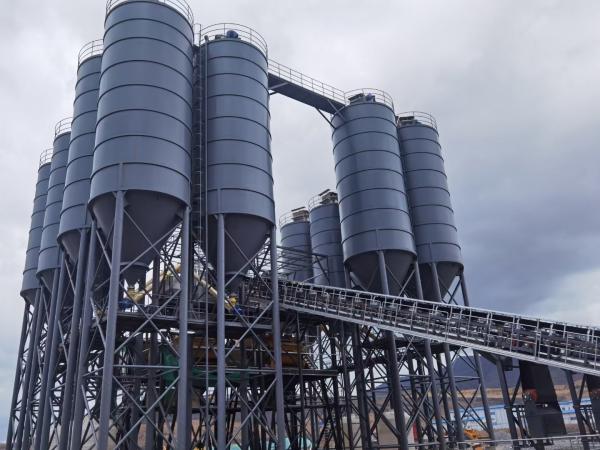

- Storage silos: Store cement and other dry materials, providing a continuous supply to the mixing process.
- Screw conveyor: Transports materials between the storage silos and the mixer.
- Control panel: A user-friendly interface that monitors and controls the entire operation, ensuring optimal efficiency.
- Optional features: Depending on specific needs, HZS60 plants may include additional features such as a dust collection system, a central control room, and an automatic bagging system.
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
Measuring range and precision of aggregate | | | | | |
Measuring range and precision of cement | | | | | |
Measuring range and precision of coal ash | | | | | |
| Measuring range and precision of water | 200-600)≤±1% | (200-600)≤±1% | (200-700)≤±1% | (360-1200)≤±1% | (360-1200)≤±1% |
| Measuring range and precision of admixture | 20-60)≤±1% | (20-60)≤±1% | (30-100)≤±1% | (36-120)≤±1% | (36-120)≤±1% |
Features of concrete batching plant:
1.It adopts combined structure and unitized module, which is short, quick and very convenient for installation and demolition .
2.Increase the unloading angle of the aggregate bin to solve the problem of unloading difficulties caused by rain
3.It is convenient and quick to use the cylinder discharge or electric push rod to discharge.
4.The overall steel structure of the mixing station is made of high-quality steel, which has high overall structural strength and strong stability.
5.The mixing machine adopts the twin-shaft forced mixing main machine, which has strong mixing performance, uniform mixing and high productivity.
6.Excellent pneumatic components, electrical components, etc.; to ensure the reliability of the equipment, accurate metering performance.
7.Each maintenance and repair site is provided with a walking platform or a check ladder, and has sufficient operation space. Easy maintenance and repair 8.Environmental protection and energy saving, using pulse dust removal, recycling waste-water for reuse
